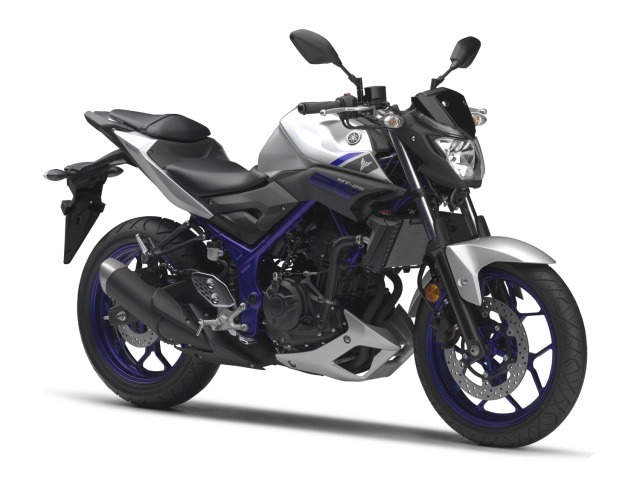

YAMAHA MT-25

Motorcycle Database

Model Name:MT-25

Manufacturer:YAMAHA

Model Year:2015

Naked bikes are so cool! So exciting! What a great feeling! You couldn’t know that bikes could make you free this much! Now let’s have fun! We got to enjoy ourselves with this MT! You’ll get hooked on its free and easy ride and you’ll definitely feel like keeping on riding! This MT will shine with your daily life! You’ll feel great driving through the town on this swift and powerful machine. Easy to ride and easy to handle. Its slim body will suit your street ride! On weekends, you can take a bike ride to some fancy coffee shop far away and refresh yourself! It’s the handy and sporty MT!

Specifications:

[Basic spec]

ManufacturerYAMAHAEngine TypeWater-Cooled 4 Stroke DOHC 4-Valve
Model NameMT-25StarterSelf Starter
GradeMaximum Output (ps)36ps/12,000r/min
Drive TrainMaximum Torque (kgf/m)2.3kgf-m/10,000r/min
Model TypeRG10JCurb Weight165
Displacement249Dry Weight
Sales Launch Year2015/10Fuel Efficiency by Catalog33.5km/L(60km/h)
Height/Width/Length1035/160/2090Fuel Tank Capacity14
Seat Height780Distance to Empty
Front Tire Indication110/70-17M/C(54S)Fuel SupplyFuel Injection
Rear Tire Indication140/70-17M/C(66S)

[Service data]

Standard PlugChain Size
Number of Used PlugsChain Link Number
Engine Oil Amount2.40LBattery CodeGTZ8V
Engine Oil (Refill)Headlight12V, 60/55W
Engine Oil (Element Replacement)Headlight Type
Front Blinker RatingHeadlight RemarksHalogen Bulb
Drive Sprocket Teeth NumberTail Light Rating
Driven Sprocket Teeth NumberRear Blinker Rating

[Machine detail]

Motor Model CodeG401ECaster Angle25 Degrees00′
Bore (mm)60Trail (mm)95
Storke (mm)44.1Minimum Ground Clearance160
Compression Ratio11.6Distance Between Axes1380
Ignition MethodTCI (Transistor Type)Streering Angle (Right)
Engine Lubrication TypeWet SumpTurning Angle (Left)
Frame TypeDiamondMirror Screw Hole Diameter
Minimum Rotaion RadiusFuel Tank Reserve Capacity

[Underbody detail]

Front Brake TypeHydraulic Single Disc BrakeSuspension Type (Rear)Swing Arm
Front Brake RemarksNumber of Rear Shock Absorbers1
Rear Brake TypeHydraulic Single Disc BrakeRear Suspension Stroke
Rear Brake RemarksRear Wheel Travel
Suspension Type (Front)TelescopicABS
Front Fork TypeUpright ForkDrive TrainChain
Front Suspension StrokeDifferential Oil Amount
Front Fork DiameterChain Remarks

[Equipment]

Seat Lowering AllowanceTheft Prevention Device
Mirror Screw Hole DiameterTail Light Bulb Type
Mirror RemarksTail Light Base Shape
Electronic Device RemarksTail Light Base Shape 2
Fuel GaugeTail Light Remarks
ClockFront Blinker Bulb Type
HazardFront Blinker Base Shape

[Engine detail]

Clutch TypeWet Type, Multiple PlateTappet Clearance (mm) EX
TransmissionPermanently Engaged 6-Speed /Normal ShiftIdling Initial Value (rpm)
Number of Gears6Needle Steps (Clip Location)
Gear Ratio2.666 / 1.882 / 1.454 / 1.200 / 1.037 / 0.920Float Level (mm)
Primary Reduction Ratio3.043Air Screw Return
Secondary Reduction Ratio3.071Main Jet Type
Variable Speed Vehicle Gear RatioMain Jet Number
Tappet Clearance (mm) IN

[Other spec]

Clutch Cable LengthRear Brake Cable Length
Choke Cable LengthOther Cables
Meter Cable LengthEngine Number (Production Launch)
Throttle Cable LengthEngine Number (Production End)
Front Brake Cable Length
