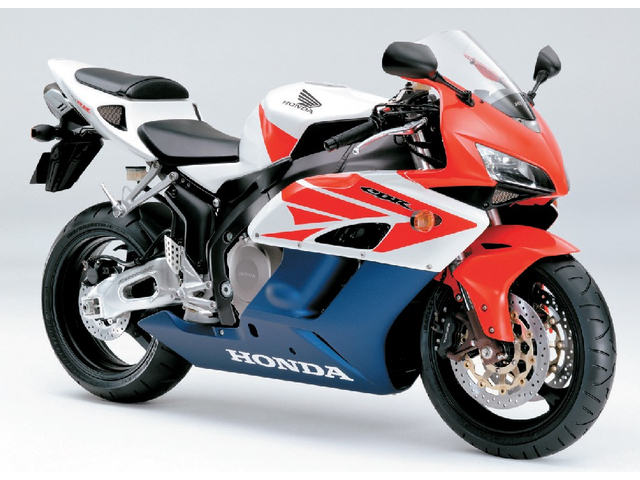

Model Name:CBR1000RR Fireblade
Manufacturer:HONDA
Model Year:2004
HONDA had poured in its latest technology to this MY04 to make it progress dramatically. It featured equipment such as the 998cc upgraded engine, the PGM-DSFI, or the unit pro-link. It came in Repsol color, too.
Specifications:
[Basic spec]
| Manufacturer | HONDA | Engine Type | Water-Cooled 4 Stroke DOHC 4-Valve Straight 4 Cylinder |
|---|---|---|---|
| Model Name | CBR1000RR Fireblade | Starter | Self Starter |
| Grade | – | Maximum Output (ps) | 172ps(127.0 kw)/11250rpm |
| Drive Train | – | Maximum Torque (kgf/m) | 11.7kg-m(114.7N-m)/8500rpm |
| Model Type | SC57 | Curb Weight | 202 (Approximate Value) |
| Displacement | 998 | Dry Weight | 179 |
| Sales Launch Year | 2004/0 | Fuel Efficiency by Catalog | 23.0 km/L (at 60 km/h) |
| Height/Width/Length | 1120/130/- | Fuel Tank Capacity | 18 |
| Seat Height | – | Distance to Empty | – |
| Front Tire Indication | – | Fuel Supply | Injection |
| Rear Tire Indication | – |
[Service data]
| Standard Plug | – | Chain Size | 530 |
|---|---|---|---|
| Number of Used Plugs | 4 | Chain Link Number | 114 |
| Engine Oil Amount | 3.8 | Battery Code | – |
| Engine Oil (Refill) | 3L | Headlight | – |
| Engine Oil (Element Replacement) | 3.1L | Headlight Type | – |
| Front Blinker Rating | – | Headlight Remarks | – |
| Drive Sprocket Teeth Number | 16 | Tail Light Rating | – |
| Driven Sprocket Teeth Number | 40 | Rear Blinker Rating | – |
[Machine detail]
| Motor Model Code | SC57E | Caster Angle | – |
|---|---|---|---|
| Bore (mm) | – | Trail (mm) | – |
| Storke (mm) | – | Minimum Ground Clearance | 130 |
| Compression Ratio | – | Distance Between Axes | – |
| Ignition Method | – | Streering Angle (Right) | – |
| Engine Lubrication Type | – | Turning Angle (Left) | – |
| Frame Type | Diamond | Mirror Screw Hole Diameter | – |
| Minimum Rotaion Radius | 3.2 | Fuel Tank Reserve Capacity | – |
[Underbody detail]
| Front Brake Type | Hydraulic Double Disc | Suspension Type (Rear) | Swing Arm |
|---|---|---|---|
| Front Brake Remarks | – | Number of Rear Shock Absorbers | – |
| Rear Brake Type | Hydraulic Disc | Rear Suspension Stroke | – |
| Rear Brake Remarks | – | Rear Wheel Travel | – |
| Suspension Type (Front) | Telescopic | ABS | – |
| Front Fork Type | – | Drive Train | Chain |
| Front Suspension Stroke | – | Differential Oil Amount | – |
| Front Fork Diameter | – | Chain Remarks | – |
[Equipment]
| Seat Lowering Allowance | – | Theft Prevention Device | Available |
|---|---|---|---|
| Mirror Screw Hole Diameter | – | Tail Light Bulb Type | – |
| Mirror Remarks | – | Tail Light Base Shape | – |
| Electronic Device Remarks | – | Tail Light Base Shape 2 | – |
| Fuel Gauge | Available | Tail Light Remarks | – |
| Clock | Available | Front Blinker Bulb Type | – |
| Hazard | – | Front Blinker Base Shape | – |
[Engine detail]
| Clutch Type | Wet Multiple Plate Coil Spring | Tappet Clearance (mm) EX | – |
|---|---|---|---|
| Transmission | Permanently Engaged 6-Stage Normal Shift | Idling Initial Value (rpm) | – |
| Number of Gears | 6 | Needle Steps (Clip Location) | – |
| Gear Ratio | – | Float Level (mm) | – |
| Primary Reduction Ratio | – | Air Screw Return | – |
| Secondary Reduction Ratio | 2.5 | Main Jet Type | – |
| Variable Speed Vehicle Gear Ratio | – | Main Jet Number | – |
| Tappet Clearance (mm) IN | – |
[Other spec]
| Clutch Cable Length | – | Rear Brake Cable Length | – |
|---|---|---|---|
| Choke Cable Length | – | Other Cables | – |
| Meter Cable Length | – | Engine Number (Production Launch) | – |
| Throttle Cable Length | – | Engine Number (Production End) | – |
| Front Brake Cable Length | – |
